CNC Diamond Tools ,CNC Wheel

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1442032

• Place of Origin:

  China

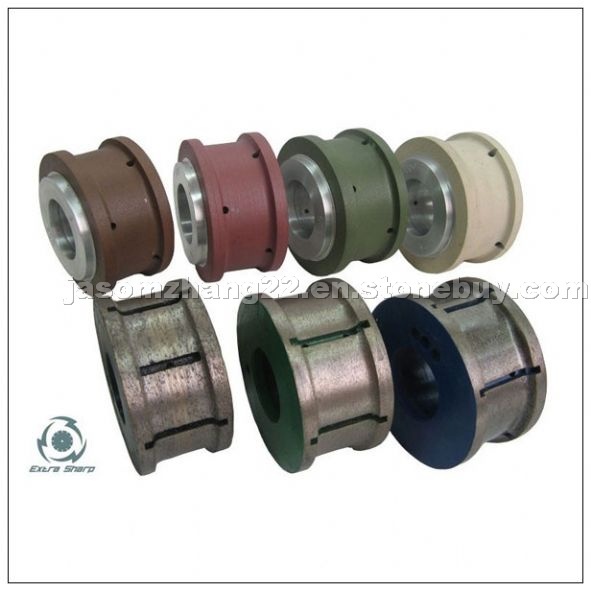

• CNC Profiling wheels are equipped on CNC stone processing machine, the excellent leader in irregular shape stone processing tools. Thanks to it precised profiling, high efficiency, it is widely used in the edge processing of vanity top and counter-top, etc.
  Position Type of Working Layer Grit Working Procedure RPM
  g/min Feed Speed (mm/min) Removal
  mm
  Pos.0 Meter sintered,Segmented 30/40 Chamforing 4500 500-600 shape
  Pos.1 Meter sintered,Segmented 30/40 Shaping 4500 500-600 shape
  Pos.2 ABR hot pressed,Continous 70/80 Coarse finishing 4500-4600 1000-1400 0.3+/-0.05
  Pos.3 ABR hot pressed,Continous 140/170 Medium finishing 4500-4600 1000-1400 0.2+/-0.05
  Pos.4 ABR hot pressed,Continous 230/270 Finishing 1200-1500 600-800 0.1+/-0.05
  Pos.5 ABR hot pressed,Continous 400 Good finishing 1200-1500 600-800 0.05+/-0.025
  Pos.6 ABR hot pressed,Continous 800 Polishing 1200-1500 600-800 0.05+/-0.025
  Pos.7 ABR hot pressed,Continous 1500 Polishing and buff 1200-1500 600-800 0.05+/-0.025
  Pos.8 ABR hot pressed,Continous 3000 Polishing and buff 1200-1500 600-800 0.05+/-0.025
